Waterway 775-6001 Heater, 5.5KW, NEO2100, H5000


  • Manufactured by: Waterway Plastics
  • Part Number: 775-6001

$139.32

Add to Cart:

Item Number: 20-46-5541

  • Description
  • Details
  • Reviews

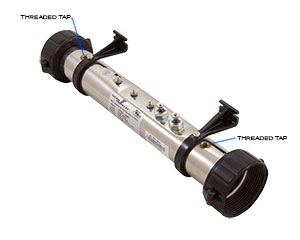

The Waterway 775-6001 flo-thru heater assembly has the following features and specifications.

Series: NEO2100, H5000 (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Mounting Studs: Yes
Number of Mounting Studs: 2 mounting studs and 1 grounding stud
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Number of Threaded Taps: 2
Threaded Tap Location(s): Sensor taps approximately 2" from leading end and 13" from leading end.

Cross Reference
The Waterway 775-6001 heater can also replace the following part numbers (but not limited to).

Waterway:
775-5001,775-6001

HydroQuip:
26-0808-5SD-K, 26-0808-5TD-K, 26-0808-7SD-K, 26-0808-7TD-K

Therm Products:
C2550-0808


The Waterway 775-6001 heater can be replaced by the heaters shown below in RELATED PRODUCTS
