Waterway 775-5001 Heater, 5.5KW, NEO2100, H5000

Waterway 775-5001 Heater, 5.5KW, NEO2100, H5000
Waterway 775-5001 Heater, 5.5KW, NEO2100, H5000

  • Manufactured by: Waterway Plastics
  • Part Number: 775-5001

$200.34



Item Number: 20-46-5578

  • Description
  • Details
  • Reviews

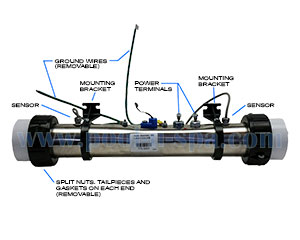

The Waterway 775-5001 flo-thru heater assembly has the following features and specifications.

Series: NEO2100, H5000 (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Mounting Studs: Yes
Number of Mounting Studs: 2 mounting studs and 1 grounding stud and wires
Temperature Sensor Included: Yes
Hi-Limit Sensor Included: Yes
Number of Threaded Taps: 2
Threaded Tap Location(s): Sensor taps approximately 2" from leading end and 13" from leading end.
Tail Pieces Included: Yes (removable)

Cross Reference
The Waterway 775-5001 heater can also replace the following part numbers (but not limited to).

Waterway:
775-5001, 775-6001

HydroQuip:
26-0808-5SD-K, 26-0808-5TD-K, 26-0808-7SD-K, 26-0808-7TD-K

Therm Products:
C2550-0808


The Waterway 775-5001 heater can be replaced by the heaters shown below in RELATED PRODUCTS


  • Manufactured by: Waterway Plastics
  • Part Number: 775-5001
  • Item Number: 20-46-5578


Be the first to write a review.  Write a Review.
