Therm Products E2550-0202ET Heater, 5.5KW, Coated, Vertical

Therm Products E2550-0202ET Heater, 5.5KW, Coated, Vertical
Therm Products E2550-0202ET Heater, 5.5KW, Coated, Vertical

  • Manufactured by: Therm Products
  • Part Number: E2550-0202ET


Call for Price

Item Number: 20-52-5533

  • Description
  • Details
  • Reviews

This heater assembly has been replaced by the heaters shown below in RELATED PRODUCTS.

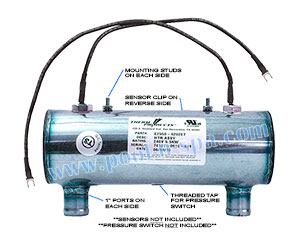

The Therm Products E2550-0202ET verticle low flow heater is mostly found in Leisure Bay, Gatsby and Hurricane hot tubs.
This heater assembly typically has 12" wire leads with terminals for power connection.

The Therm Products E2550-0202ET (Coated 5.5KW) low-flow heater assembly has the following features and specifications.

Series: Vertical (but not limited to, unless specified otherwise above).
Manifold Length: 9"
Manifold Diameter: 3" (with 1" barbed ports)
Stainless Steel: Yes
Element Grade: Coated
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Clip for Sensor: Yes
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): No
Number of Threaded Taps: 1
Threaded Tap Location(s): Pressure switch tap is between the 1" ports.

Cross Reference
The Therm Products E2550-0202ET heater can also replace the following part numbers (but not limited to).

Therm Products:
E2550-0202, E2550-0202-1, E2550-0202ET-1, E2550-0204, E2550-0204ET, E2550-0102ET

AquaTemp Products:
26-00141, 26-00107

Therm Products:
E2400-0202, E2400-0202-1, E2400-0204, E2400-0204ET, E2400-0003

  • Manufactured by: Therm Products
  • Part Number: E2550-0202ET
  • Item Number: 20-52-5533
