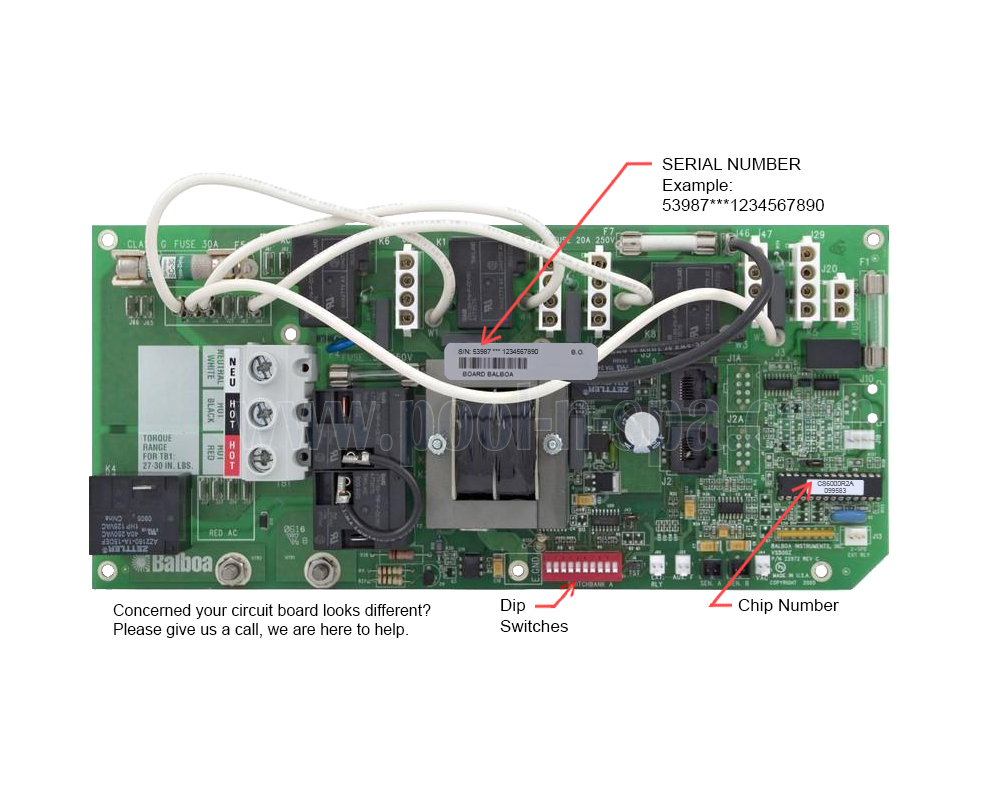

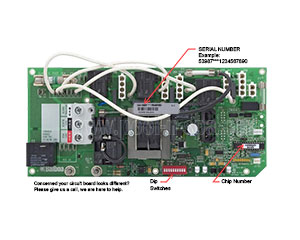

Balboa 53987 Circuit Board CS6000R2(x), Cal Spa ELE09100221

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 53987
  • Chip Number: CS6000R2(x)


Call for Price

Item Number: 22-8668

  • Description
  • Details
  • Reviews

The Balboa 53987 CS6000R2(x) circuit board is discontinued but we have options.

Option 1: Scroll down to RELATED PRODUCTS for other replacement options.

Option 2: Get your circuit board repaired.  Please contact us before sending items in for repair.

Option 3: Contact us to inquire about a new retro-fit system control box replacement.

The Balboa 53987 CS6000R2(x) circuit boards are also found in hot tubs made by Cal Spa under the part numbers ELE09100221, CALELE09100221, 09100221.
Cross Reference Verification
Serial Numbers:
  • 53987
  • BAL53987

Chip Numbers:
  • CS6000R2A
System Control Box Serial Numbers
Tip: The system control box is usually located below the hot tub and the circuit board mounts inside of it.

The Balboa 53987 CS6000R2(x) circuit board can be found in the following hot tub system control boxes (but not limited to).

System Control Box Serial Numbers:
  • 53986
Tip: When replacing a hot tub circuit board, testing the heater and replacing it (if bad), is recommended before installing or applying voltage on a new circuit board.
Note: A continuity test is not a sufficient heater test. Contact us by phone for more details on testing a heater.
See RELATED PRODUCTS below for heater replacements.

Tip: Burned circuit boards or burned heater relays are often due to a loose electrical connection or a bad heater or both.
If all connections are tight and if the heater is good then the heater relays are probably old and worn out.
If a burned relay was powering a pump and all electrical connections are tight then the relay is probably old and worn out or the pump might be bad or going bad or all three.
Replacing the heater and/or pump with a new one is recommended if any of those scenarios apply.

Tip: See RELATED PRODUCTS below for more Balboa 53987 CS6000R2(x) replacement options.

Unsure of what something on this page means?

Please contact us so we can better assist you.
