Balboa 58083 Heater, 5.5KW, M7, LE, VALUE, EL

Balboa 58083 Heater, 5.5KW, M7, LE, VALUE, EL
Balboa 58083 Heater, 5.5KW, M7, LE, VALUE, EL
Balboa 58083 Heater, 5.5KW, M7, LE, VALUE, EL

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58083

$186.36



Item Number: 20-46-5500

  • Description
  • Details
  • Reviews
ATTENTION: This heater assembly has been replaced/upgraded into a new part number and the upgraded heater assembly is the same.
You will be shipped the upgraded heater assembly.


The Balboa 58083 (5.5KW) M7 heater assembly can replace many Balboa heaters.

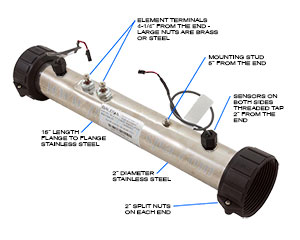

ATTENTION: This heater has two mounting studs (as shown in photo above) and should be considered when replacing a heater with no mounting studs.
In most cases the mounting studs don't get in the way but it is a good idea to make sure by evaluating the objects around your heater and how close they are, verifying you have enough clearance.

The Balboa 58083 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B58083, BAL58083
Series: M7, LE, VALUE, EL (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Mounting Studs: Yes
Number of Mounting Studs: 2
Temperature Sensor Included: Yes
Hi-Limit Sensor Included: Yes
Split Nuts Included: Yes

Cross Reference
The Balboa 58083 heater can also replace the following part numbers (but not limited to).

Balboa:
58282, 55302, 55473, 58002, 58016, 58086, 58089, 58090, 58121, 58123, 58140, 58209, 58306

Cal Spa:
HEA14100450

HydroQuip:
26-0807-7S-KS, 25-58002-K, 26-58083-K, Therm Products C2500-0807-TPS


Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).
53267, 53267-01, 53267-02, 53267-HC, 53267HC1, 53267HC2, 53316, 53527, 53527-01, 53527-02, 53527HC1, 53600, 53600-01, 53600-02, 53600-HC, 53602, 53602-01, 53603, 53603-01, 53608, 53608-01, 53608-02, 53619, 53649, 53752, 53752-01, 53752-02, 53787, 53957, 53957-01, 53983-05, 53986, 53986-01, 53988, 53988-01, 54200, 54200-01, 54202, 54291, 54291-01, 54291-02, 54293, 54293-01, 54293-02, 54337, 54337-01, 54337-02, 54337-03, 54337-04, 54344, 54350, 54350-01, 54352, 54354, 54356, 54356-01, 54356-02, 54356-03, 54356-HC, 54356HC1, 54356HC2, 54356HC3, 54360, 54366, 54368, 54368-01, 54368-02, 54368-03, 54368-HC, 54368HC1, 54368HC2, 54368HC3, 54371, 54371-01, 54371-02, 54371-03, 54371-HC, 54371HC1, 54371HC2, 54371HC3, 54377, 54377-01, 54377-02, 54377-03, 54377-HC, 54377HC1, 54377HC2, 54377HC3, 54380, 54380-01, 54380-02, 54382-05, 54384-02, 54384-03, 54384-04, 54390-02, 54390-03, 54478, 54478-01, 54478-02, 54491, 54491-01, 54491-02, 54493, 54585, 54587, 54603, 54603-01, 54635, 54635-01, 54637, 54637-01, 54639, 54639-01, 54645, 54645-01, 54661, 54661-01, 54661-HC, 54707, 54756, 54762, 54762-01, 55023-01, 55023-02, 55023-03, 55023-04, 55023-05, 55023-06, 55056, 55056-01, 55056-02, 55056-03, 55065, 55065-01, 55065-02, 55065-03, 55065-04, 55066, 55066-01, 55066-02, 55066-03, 55066-04, 55067, 55067-01, 55067-02, 55067-03, 55068, 55068-01, 55068-02, 55068-03, 55068-04, 55069, 55069-01, 55069-02, 55069-03, 55069-04, 55100, 55100-01, 55173, 55173-01, 55178, 55178-01, 55178-02, 55210, 55227, 55236, 55240, 55240-01, 55257, 55338, 55363, 55366, 55371, 55371-01, 55373, 55373-01, 55375, 55375-01, 55476, 55483, 55488, 55492, 55501, 55515, 55515-01, 55601, 55636, 55646, 55664, 55666, 55695, 55736, 55736-01, 55736-02, 55736-03, 55736-04, 55796, 55797, 55811, 55813, 55833, 55839, 55839-01, 55839-02, 55848, 55860, 55944, 55958, 55958-01, 56007, 56007-01, 56007-HC, 56007HC1, 56008, 56008-01, 56009, 56016, 56016-01, 56018, 56019, 56020, 56021, 56056, 56070, 56075, 56075-01, 56075-02, 56076, 56134, 56142, 56150, 56156, 56174, 56183, 56185, 56216, 56216-01, 56229, 56230, 59004, 59004-01, 59004-02, 59004-HC, 59004HC1, 59004HC2

Control box system not included.


The Balboa 58083 heater can be replaced by the heaters shown below in RELATED PRODUCTS


  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58083
  • Item Number: 20-46-5500
