Spa Components B24045T Heater, 4.5KW, Universal

Spa Components B24045T Heater, 4.5KW, Universal
  • Manufactured by: Spa Components
  • Part Number: B24045T

$90.27



Item Number: 20-46-4500

  • Description
  • Details
  • Reviews

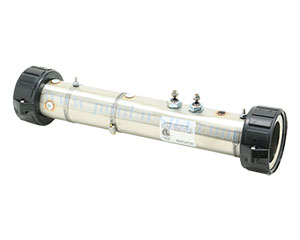

This Spa Components B24045T universal heater assembly has 6 threated taps (for a pressure switch or sensors), 2 moveable mounting studs, 1 moveable sensor-clip/cover, 1 heater element (already installed into the manifold) and split nuts on each end.

This heater can replace 4.0KW, 4.5KW, 5.0KW and 5.5KW elements (most hot tub owners can't tell a difference in heat recovery or power consumption between the different ratings).

The Spa Components B24045T flo-thru heater assembly has the following features and specifications.

Additional Spa Components Part Numbers: B24045T5T, B24045T-5T
Series: Universal (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 4.5KW / 1.1KW
Voltage Rating: 240V / 120V
Mounting Studs: Yes
Number of Mounting Studs: 2
Clip for Sensor: Yes
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): No
Number of Threaded Taps: 1
Threaded Tap Location(s): Pressure switch tap 12 O'Clock.

The Spa Components B24045T heater can be replaced by the heaters shown below in RELATED PRODUCTS


  • Manufactured by: Spa Components
  • Part Number: B24045T
  • Item Number: 20-46-4500
