Hydro-Quip 48-9123-7T-K Heater, 5.5KW, Arctic Spas, Curved

  • Manufactured by: Hydro-Quip, Inc.
  • Part Number: 48-9123-7T-K

$158.79

Add to Cart:

Item Number: 20-46-5594

  • Description
  • Details
  • Reviews
ATTENTION: This item does not have a 5-pin mini JJ plug.

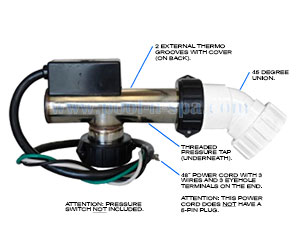

The Hydrp Quip 48-9123-7T-K remote heater assembly has a 45 degree union, two external thermo-grooves with cover, threaded pressure tap and a 48" power cord with three eyehole terminals (no 5-pin plug).

This is an aftermarket heater (with bare cord) made by Hydro Quip for use with Arctic Spas.

Pressure switch is not included..


The Hydro-Quip 48-9123-7T-K flo-thru heater assembly has the following features and specifications.

Series: Curved (but not limited to, unless specified otherwise above).
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Clip for Sensor: Yes
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): No
Number of Threaded Taps: 1
Threaded Tap Location(s): See photo above.
Tail Pieces Included: Yes (removable)

  • Manufactured by: Hydro-Quip, Inc.
  • Part Number: 48-9123-7T-K
  • Item Number: 20-46-5594
