Hydro-Quip 48-9121-7S-K Heater, 5.5KW, Artic Spas, L-Shape

  • Manufactured by: Hydro-Quip, Inc.
  • Part Number: 48-9121-7S-K


Add to Cart:

Item Number: 20-49-0652

  • Description
  • Details
  • Reviews
The Hydro Quip 48-9121-7S-K L-Style heater assembly is an aftermarket heater made for use on Arctic Spas.

ATTENTION: This heater's 5'-0" power cord has two wires with eyehole terminals (for connecting directly to the circuit board) and one wire with a female spade terminal for grounding.
It does NOT have the 5-pin mini plug.

Pressure switch is not included.

The Hydro-Quip 48-9121-7S-K l-style heater assembly has the following features and specifications.

Series: L-Shape (but not limited to, unless specified otherwise above).
Manifold Length: 12.75"
Manifold Diameter: 2"
Stainless Steel: Yes
Stainless Steel Grade: Incoloy
Heating Element Included: Yes
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Clip for Sensor: Yes
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): No
Number of Threaded Taps: 1

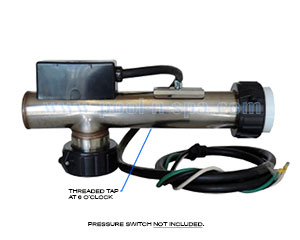

Threaded Tap Location(s): Pressure switch tap, see photo above.
Tail Pieces Included: Yes (removable)

Cross Reference
The Hydro-Quip 48-9121-7S-K heater can also replace the following part numbers (but not limited to).


The Hydro-Quip 48-9121-7S-K heater can be replaced by the heaters shown below in RELATED PRODUCTS
