Gecko 9920-101435 Heater, 4.0KW, HEAT.WAV, IN-XE, IN-YE, IN-FLO

Gecko 9920-101435 Heater, 4.0KW, HEAT.WAV, IN-XE, IN-YE, IN-FLO
  • Manufactured by: Gecko Alliance

$132.54



Item Number: 20-46-4139

  • Description
  • Details
  • Reviews

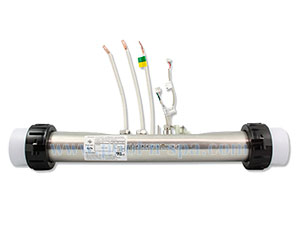

The Gecko 9920-101435 heater assembly is in the HEAT.WAV series and can be found in IN.XE and IN.YE control systems.

This is a high performance heater that with no pressure switch and features Gecko's IN.FLO integrated dry-fire protection.

This heater is shipped in a 4.0KW/240V configuration that can be easily converted to 1.0KW/120V with a simple switch of a cable connection port.
Changing the kilowatt and voltage configuration can be done on production lines, in dealer showrooms or in the field.

Model: WAV-XE4-240-2-INC, HEAT.WAV-XE4-240-2-INC

The Gecko 9920-101435 flo-thru heater assembly has the following features and specifications.

Additional Gecko Part Numbers: T9920-101435
Series: HEAT.WAV, IN.XE, IN.YE, IN.FLO (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 4.0KW / 1.0KW
Voltage Rating: 240V / 120V
Temperature Sensor Included: Yes
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): Yes
Number of Threaded Taps: 1
Threaded Tap Location(s): Pressure switch tap 12 O'Clock.
Tail Pieces Included: Yes (removable)
Tail Piece Size: 2" x 2" (removable)
