Balboa 58048 Heater, 4.0KW, R574, R576, R574/6, 2000LE, HS200, LE

Balboa 58048 Heater, 4.0KW, R574, R576, R574/6, 2000LE, HS200, LE
Balboa 58048 Heater, 4.0KW, R574, R576, R574/6, 2000LE, HS200, LE

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58048

$139.86



Item Number: 20-46-4010

  • Description
  • Details
  • Reviews

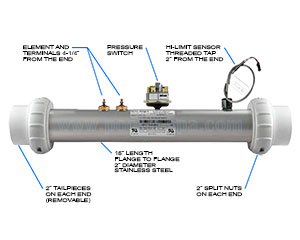

The Balboa 58048 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B58048, BAL58048, BB58048
Series: R574, R576, R574/6, 2000LE, HS200, LE, VALUE (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 4.0KW / 1.0KW
Voltage Rating: 240V / 120V
Temperature Sensor Included: No
Hi-Limit Sensor Included: Yes
Pressure Switch Included (A.K.A. Flow Switch): Yes
Number of Threaded Taps: 2
Threaded Tap Location(s): Pressure switch tap (center) approximately 8-1/4" from leading end @ 12 O`Clock and sensor tap approximately 13" from leading end @ 12 O'Clock.
Gaskets Included: Yes
Split Nuts Included: Yes
Tail Pieces Included: Yes (removable)
Tail Piece Size: 2" x 2" (removable)


Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).
52221-03, 52221-04, 52221-05, 52296-02, 52296-03, 52296-04, 52296-05, 52526, 52866-03

Control box system not included.


The Balboa 58048 heater can be replaced by the heaters shown below in RELATED PRODUCTS
