Coleman Spas 101-285 Circuit Board 115/7R1(x)

  • Manufactured by: Coleman Spas

$388.65

Add to Cart:

Item Number: 22-7539

  • Description
  • Details
  • Reviews
Please read entire page before placing an order.

For a money saving option, give us a call and ask about getting your circuit board repaired.

This new OEM circuit board is for replacing Coleman Spas 101-285 circuit boards having a 115/7R1(x) chip number.
The 101-285 part number may also be shown as 101285.

Tip: The "(x)" shown above is shorthand for a range of last letters on 115/7R1 chip numbers this circuit board can replace.

Please note: A list of chip numbers this circuit board can replace is specified in the CROSS REFERENCE VERIFICATION section below.

Please Note: The numbers on the new circuit board you receive may be different and the components may look slightly different but it will still connect the same and it is a fully compatible OEM replacement .
Cross Reference Verification
Tip: Locate the chip number on the circuit board you are replacing.
Tip: The whole chip number is on a sticker located on the circuit board (not the box).
Tip: The chip number sticker usually has two lines of text and the top line is the whole chip number (the bottom line is not needed).

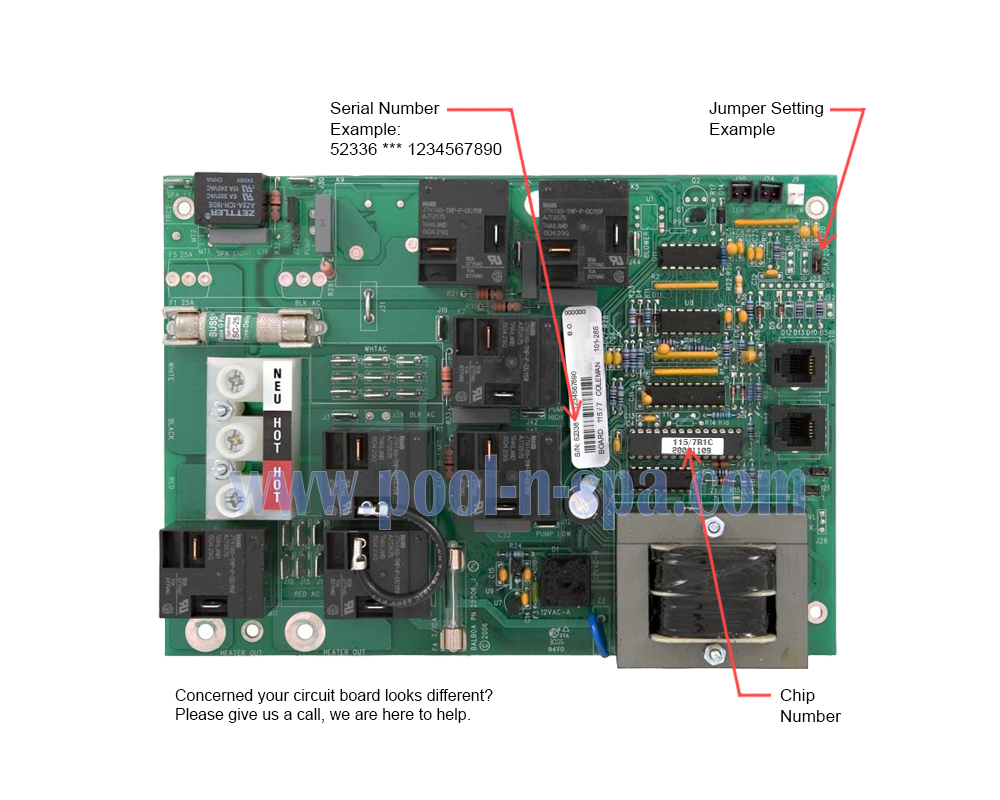

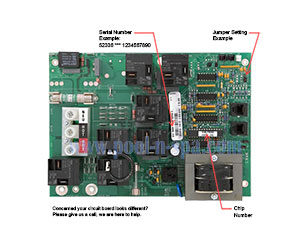

Tip: See image above for an example of a chip number sticker and where they're typically found on the circuit board (click the image to enlarge it).

Verify the chip number on the circuit board being replaced placed is in this list.

Chip Numbers:
  • 115/7R1A
  • 115/7R1B
  • 115/7R1C
  • 115/7R1D
  • 115R1A
  • 115R1B
  • 115R1C
  • 115R1D
  • 117R1A
  • 117R1B
  • 117R1C
  • 117R1D
Additional Cross Ref., Compatibility & Installation
If a wiring diagram is shipped with this new circuit board (or emailed) then it shall override your existing wiring diagram.

Otherwise, set wires and/or jumper pins and/or dip switches on the new circuit board to match how they are on the existing circuit board (assuming the old circuit board is already set correctly as per the original wiring diagram on the existing control box).
