Balboa 54341 Circuit Board LB501SR1(x), Leisure Bay Hot Tubs

Balboa 54341 Circuit Board LB501SR1(x), Leisure Bay Hot Tubs
  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 54341
  • Chip Number: LB501SR1(x)

$589.31



Item Number: 22-8897

  • Description
  • Details
  • Reviews
Please read entire page before placing an order.

This new OEM circuit board is for replacing Balboa 54341 circuit boards having a LB501SR1(x) chip number.

The Balboa 54341 LB501SR1(x) circuit boards are also found in hot tubs made by Leisure Bay Hot Tubs and possibly others.

Tip: The "(x)" shown above is shorthand for a range of last letters on LB501SR1 chip numbers this circuit board can replace.

Please note: A list of chip numbers this circuit board can replace is specified in the CROSS REFERENCE VERIFICATION section below.

Please Note: The numbers on the new circuit board you receive may be different and the components may look slightly different but it will still connect the same and it is a fully compatible OEM replacement .
Cross Reference Verification
Step 1 of 2:
Tip: Locate the serial number on the old circuit board being replaced.
Tip: The serial number is on a sticker on the old circuit board (not the box).
Tip: The serial number is shown on the sticker preceded by S/N or P/N (part number).

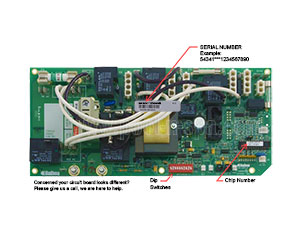

Tip: The image above shows an example of a serial number sticker (click image to enlarge it).
