Balboa 52215 Circuit Board R742R1(x) Alt Replace, with Panel, Jacuzzi

Please read entire page before placing an order.

Cross Reference Verification

Step 1 of 2:
Tip: Locate the serial number on the old circuit board being replaced.
Tip: The serial number is on a sticker on the old circuit board (not the box).
Tip: The serial number is shown on the sticker preceded by S/N or P/N (part number).
Tip: The image above shows an example of a serial number sticker (click image to enlarge it).

Verify the serial number on the old circuit board being replaced is in this list.

Serial Numbers:

• 52215
• BAL52215
• 9710-40

Step 2 of 2:
Tip: Locate the chip number on the circuit board you are replacing.
Tip: The whole chip number is on a sticker located on the circuit board (not the box).
Tip: This is a different sticker than the serial number sticker.
Tip: The chip number sticker usually has two lines of text and the top line is the whole chip number (the bottom line is not needed).
Tip: See image above for an example of a chip number sticker and where they're typically found on the circuit board (click the image to enlarge it).

Verify the chip number on the circuit board being replaced placed is in this list.

Chip Numbers:

• R742R1A
• R742R1B
• R742R1C

Additional Cross Ref., Compatibility & Installation

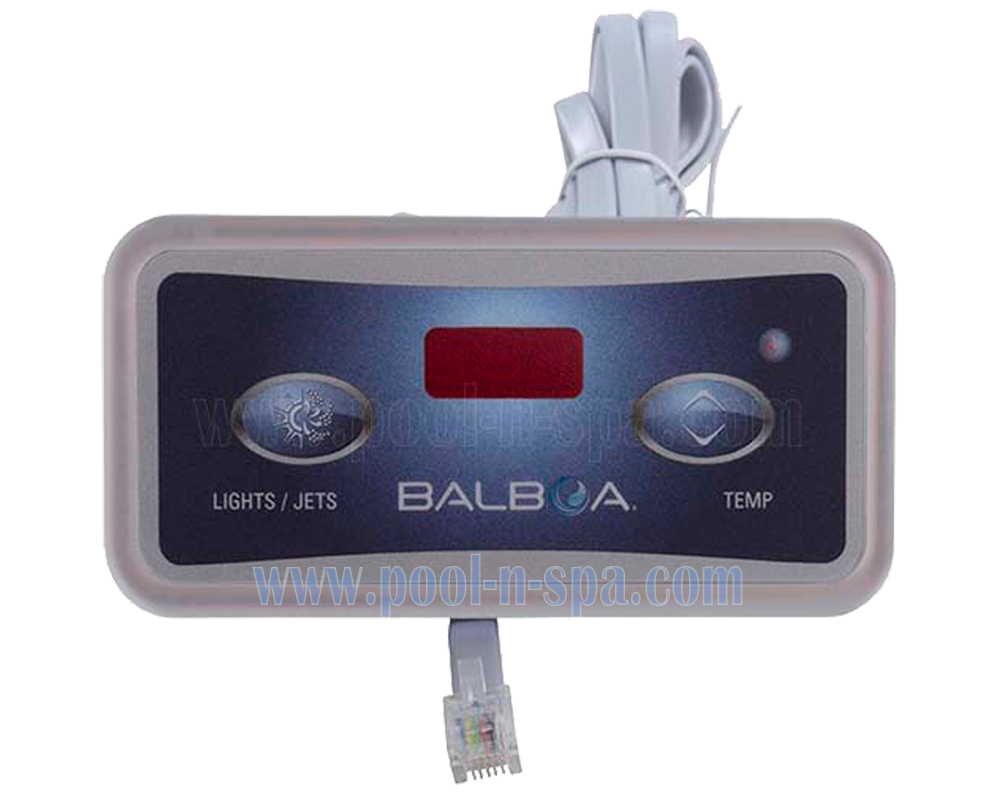

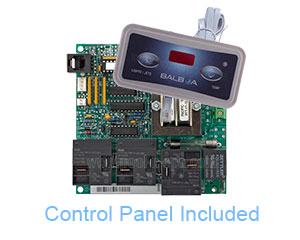

This alternate circuit board replacement package includes a new circuit board and a new compatible topside keypad with a 7 foot cord!
Tip: The old (original) topside keypad is outdated, not compatible and replaced with the new topside keypad in this package.

If you want this same package deal with a longer topside cord, please scroll down to Related Products and find the other alternate replacement shown.

ATTENTION: Some of these hot tub systems have an optional auxiliary topside keypad that is also not compatible with this alternate replacement circuit board.
If you have an optional auxiliary topside keypad, please call us with its part number (before placing this order) for inquiries on replacement availability.

Tip: When replacing a hot tub circuit board, testing the heater and replacing it (if bad), is recommended before installing or applying voltage on a new circuit board.
Note: A continuity test is not a sufficient heater test. Contact us by phone for more details on testing a heater.

Tip: Burned circuit boards or burned heater relays are often due to a loose electrical connection or a bad heater or both.
If all connections are tight and if the heater is good then the heater relays are probably old and worn out.
If a burned relay was powering a pump and all electrical connections are tight then the relay is probably old and worn out or the pump might be bad or going bad or all three.
Replacing the heater and/or pump with a new one is recommended if any of those scenarios apply.

Tip: See RELATED PRODUCTS below for more Balboa 52215 R742R1(x) replacement options.
Tip: Other items shown in RELATED PRODUCTS below have also been found in hot tub systems with Balboa 52215 R742R1(x) circuit boards.
