Balboa 58009 Heater, 4.0KW


  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58009


Call for Price

Item Number: 20-46-7051

  • Description
  • Details
  • Reviews

This heater assembly has been replaced by the heaters shown below in RELATED PRODUCTS.

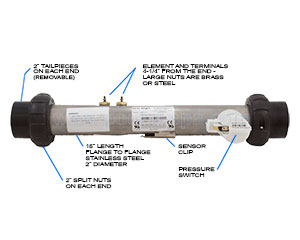

The Balboa 58009 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B58009, BAL58009
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 4.0KW / 1.0KW
Voltage Rating: 240V / 120V
Clip for Sensor: Yes
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): Yes
Number of Threaded Taps: 2
Threaded Tap Location(s): Pressure switch tap approximately 13" from leading end @ 3 O'Clock and sensor tap approximately 13" from opposite leading end @ 12 O'Clock.
Gaskets Included: Yes
Split Nuts Included: Yes
Tail Pieces Included: Yes (removable)
Tail Piece Size: 2" x 2" (removable)


Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).
52148, 52148-01, 52148-03, 52148-04, 52148-05, 52148-06, 52148-07, 52148-08, 52148-09, 52148-10, 52148-11, 52148-12, 52148-C3, 52148-C4, 52148-C5, 52148-C6, 52148-C7, 52148-C8, 52148-C9, 52148C10, 52148C12, 52216-03, 52216-04, 52216-05, 52216-06, 52148-06, 52256, 52256-01, 52256-02, 52256-03, 52256-04, 52256-05, 52256-06, 52256-07, 52256-08, 52256-C, 52256-C1, 52256-C2, 52256-C3, 52256-C4, 52256-C5, 52256-C6, 52256-C7, 52256-C8

Control box system not included.
