Balboa 50096 Heater, 5.5KW

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 50096


Add to Cart:

Item Number: 20-46-5596

  • Description
  • Details
  • Reviews

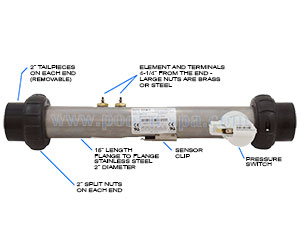

The Balboa 50096 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B50096, BAL50096
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Clip for Sensor: Yes
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): Yes
Number of Threaded Taps: 1
Threaded Tap Location(s): Pressure switch tap approximately 13" from leading end @ 3 O'Clock.
Gaskets Included: Yes
Split Nuts Included: Yes
Tail Pieces Included: Yes (removable)
Tail Piece Size: 2" x 2" (removable)

Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).

Control box system not included.

The Balboa 50096 heater can be replaced by the heaters shown below in RELATED PRODUCTS
