Balboa 50067 Heater, 4.0KW


  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 50067

$123.02

Add to Cart:

Item Number: 20-46-4000

  • Description
  • Details
  • Reviews

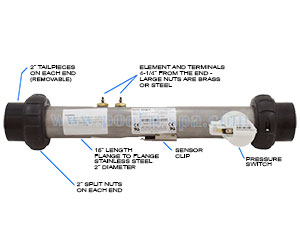

The Balboa 50067 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B50067, BAL50067
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Heating Element Included: Yes
Kilowatt Rating: 4.0KW / 1.0KW
Voltage Rating: 240V / 120V
Clip for Sensor: Yes
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Pressure Switch Included (A.K.A. Flow Switch): Yes
Number of Threaded Taps: 1
Threaded Tap Location(s): Pressure switch tap approximately 13" from leading end @ 3 O'Clock.
Gaskets Included: Yes
Split Nuts Included: Yes
Tail Pieces Included: Yes (removable)
Tail Piece Size: 2" x 2" (removable)


Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).
50674, 51286-10, 51547, 51547-01, 51547-02, 51582-09, 51677, 51677-01, 51677-02, 51677-05, 51677-06, 51677-07, 51677-08, 51677-09, 51677-10, 51677-11, 51677-12, 51677C10, 51677C11, 51677C12, 51677-C9, 51685-03, 51685-05, 51685-06, 51691-03, 51691-04, 51691-07, 51691-08, 51691-09, 51691-10, 51691-11, 51691-12, 51691C10, 51691C11, 51691C12, 51691-C9, 51732, 51732-01, 51732-02, 51732-04, 51732-05, 51732-06, 51732-07, 51732-08, 51732-09, 51732-C9, 51890-02, 51948-05, 51948-06, 51999-04, 51999-05, 51999-06, 51999-07, 51999-C4, 51999-C5, 51999-C6, 52109-03, 52146, 52146-01, 52146-02, 52155, 52155-01, 52155-02, 52155-03, 52155-04, 52155-C2, 52155-C3, 52155-C4, 52157-03, 52159, 52164-03, 52181, 52181-01, 52216-01, 52216-02, 52234, 52234-01, 52258, 52279, 52279-01, 52279-02, 52279-03, 52279-04, 52344-A3, 52493, 52829, 52829-01, 52829-02, 52951, 52951-01, 53075, 53109-02, 53109-03, 53413, 53413-01, 54114-C, 54114-H, 54114-H1, 54114-HC, 54114HC1, 54151, 54151-01, 54583, 55544, 55545

Control box system not included.


The Balboa 50067 heater can be replaced by the heaters shown below in RELATED PRODUCTS


  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 50067
  • Item Number: 20-46-4000
